點擊圖片放大商品名稱:
DAIICHI KEIKI 雙金屬溫度計 OB
DAIICHI KEIKI 雙金屬溫度計 OB
詳細介紹:
這是一種通過兩種金屬的膨脹來感測溫度的產品。

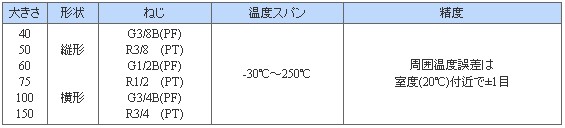

OB規格圖
更多商品
DAIICHI KEIKI 玻璃溫度計 OG
您可以根據管件選擇垂直或L形狀。OG規格圖
ARTHERMO C71 隔測溫度計
溫度範圍: -40+40°C; 0+120°C; 50+350°C Telethermometer C71 with zinc plated steel body and steel frame, capillary mm 1500 Ø 2,4 mm PVC coated, white dial with black numbers and Arthermo logo, free bulb Ø6 mm. Optional: Different capillary lengths Nude capillary Bimetallic compensation Different size of bulb Different color of displays and/or number Threaded nipple Different temperature ranges Max temperature case tolerance 80°C Case diameters Ø52, Ø60, Ø80 mm Brass or copper bulb Ø6 mm Copper capillary Coated in PVC Case material Zinc plated steel Frame Stainless steel Fastener With brackets Temperature ranges -40+40°C; 0+120°C; 50+350°C Dial White with black numbers
ARTHERMO F84 FA 隔測溫度計
溫度範圍 : -40+40°C; 0+120°C; 50+350°C Telethermometer F84 FA flush-mounted type, grey moplen body, stainless steel frame, capillary mm.1500 Ø3,5 mm PVC coated, white dial with black numbers and Arthermo logo, free bulb Ø6 mm. Optional: Different capillary lengths Copper braid capillary for high temperatures Bimetallic compensation Different size of bulb Different color of displays and/or number Threaded nipple Different temperature ranges Max temperature tolerance case 60°C Case diameters Ø60, Ø80, Ø100 mm Brass or copper bulb Ø6 mm Copper capillary 1500mm coated in PVC Case material Loaded grey resin Frame Stainless steel Fastener With screws Temperature ranges -40+40°C; 0+120°C; 50+350°C Dial White with black numbers
ARTHERMO F84 FP 隔測溫度計
溫度範圍 : -40+40°C / 0+120°C / 50+350°C Telethermometer F84 FP for surface mounted application, grey moplen body, capillary mm.1500 Ø3,5 mm PVC coated, white dial with black numbers and Arthermo logo, free bulb Ø6 mm. Optional: Different capillary lengths Copper braid capillary for high temperatures Bimetallic compensation Different size of bulb Different colour of displays and/or number Threaded nipple Different temperature ranges Max temperature tolerance case 60°C Case diameters Ø60, Ø80, Ø100 mm Brass or copper bulb Ø6 mm Copper capillary 1500mm coated in PVC Case material Loaded grey resin Frame Stainless steel Fastener With screws Temperature ranges -40+40°C; 0+120°C; 50+350°C Dial White with black numbers
ARTHERMO F87 R 隔測溫度計
溫度範圍 : -40+40°C / 0+120°C / 50+350°C Telethermometer F87 R with reversible flange, black resin case and flange, capillary mm.1500 in copper coated with PVC 3,5 dia, white dial with black numbers and Arthermo logo, free bulb Ø 7,5 mm. Optional: Different capillary lengths Bimetallic compensation Different size of bulb Different color of displays and/or number Threaded nipple Different temperature ranges Max temperature case tolerance 60°C Case diameters Ø60, Ø80, Ø100 mm Brass or copper bulb Ø 7,5 mm Capillary 1500 mm in copper Case material Loaded black resin Frame Loaded black resin Fastener With screws Temperature ranges -40+40°C, 0+120°C; 50+350°C Dial White with black numbers
ARTHERMO CP 05 隔測溫度計
溫度範圍: -40+40°C / 0+120°C / +50+350°C Capillary thermometer CP 05 case Ø 52 mm, black body with black plastic frame, capillary mm.1500 Ø 2,4 mm PVC coated, white dial with black numbers and Arthermo logo, free bulb Ø 6 mm. Optional: Different capillary lengths Capillary without pvc coating Spiral compensation Display and/or numbers with different colours Different frame (black or white plastic, chromed or inox) Different temperature settings Casing max temperature tolerance 60°C Brass or copper bulb Ø6 mm Copper capillary 1500mm PVC coated Case material Black plastic Frame Plastic (black, white or chromed) or stainless steel Fixing Self-locking clips Temperature range -40+40°C; 0+120°C, +50+350°C Dial White with black numbers
ARTHERMO RO 2000 隔測溫度計
溫度範圍: -40+40°C / 0+120°C / +50+350°CTelethermometer RO 2000 with rectangular black body, capillary mm 1500 Ø2,4 mm PVC coated, white drum with blue and red or black numbers, Arthermo logo and free bulb Ø6 mm. RO Horizontal reading RV Vertical reading Optional: Different capillary lengths Bimetallic compensation Different bulb size Black drum or different color of numbers Different temperature ranges Max temperature tolerance casing 60°C Temperature range -40+40°C; 0+120°C, +50+350°C Capillary 1500 mm PVC coated Casing material Black resin Fastener Self-locking clips Dial White with blue/red or black numbers Other orientation Vertical Other colour White
ARTHERMO RO-88 隔測溫度計
溫度範圍: -40+40°C / 0+120°C / +50+350°CTelethermometer RO-88 with rectangular black body, capillary mm 1500 Ø2,4 mm PVC coated, white drum with blue and red or black numbers, Arthermo logo and free bulb Ø6 mm. RO Horizontal reading RV Vertical reading Optional: Different length capillary Bimetallic compensation Different bulb size Black drum or different color of numbers Different temperature range Max temperature tolerance casing 60°C Temperature range -40+40°C; 0+120°C; +50+350°C Capillary 1500 mm PVC coated Casing material Black resin Fastener Self-locking clips Dial White with red and blue or black numbers Other orientation Vertical Other colour White
